HIPS is my go-to filament for helping to print complicated designs with overhangs that require support.

However, HIPS isn’t just a support material. It might be one of the most underrated 3d print filaments available.

This thermoplastics versatility in terms of its ability to be machined, sanded, glued, and painted, makes it an ideal choice for prototyping and general printing.

In this article were going to take a look at HIPS, examine its main features and benefits, and give you some tips on how to 3D print with HIPS material so that you get the best results.

We’ll also compare HIPS with other 3D printing materials such as PLA and ABS, so you can decide which filament is right for your project.

HIPS filament applications and uses

What is HIPS Filament?

HIPS stands for high-impact polystyrene. High impact polystyrene is a synthetic copolymer that is strong, durable, non-toxic and recyclable. In addition, HIPS is soluble in Limonene, an easily obtainable solvent that is derived from the skin of lemons.

Chemically, HIPS is a graft copolymer incorporating pure polystyrene and polybutadiene rubber. It combines the hardness of polystyrene with the elasticity of rubber to produce a high impact thermoplastic that is tough and strong without being brittle.

Commercially known by the trade name Bextrene, HIPS is widely used to manufacture toys and appliances. It is also used for product packaging and cases.

In 3D printing, HIPS makes an excellent soluble support material.

When is support material needed? Well, all 3d printers, by necessity, start printing an object from the bottom of the design and then progress upwards.

Because of this, if you have a design that incorporates overhangs, areas in the print job that don’t have any underlying support, you’ve got a problem. You see, your printer can’t successfully extrude filament onto thin air.

HIPS can be used to provide the necessary support that these overhanging areas require. The printer first lays down HIPS under where the overhang will be and then lays the selected printing material down on top of the layer of HIPS. The HIPS supports the overhanging material and prevents the warping, deformation and collapse that would occur without the support.

Once the printing is complete and the object has cooled, you remove the HIPS by submerging the object in Limonene. After 24 hours, the Limonene will have dissolved the HIPS leaving you with a print job that has clean, crisp angles, corners and overhangs.

There is no need for knives, scraping or sanding. The solvent does all the work leaving you with beautiful results.

HIPS works really well as a soluble support material when ABS is used as the printing material. If your support material and your printing material have significantly different printing temperatures you run the risk that the one will warp and deform the other due to this difference. HIPS and ABS share nearly identical printing temperatures. This means they will lie together cleanly without any warping or deformation due to heat.

Support Materials HIPS dissolving

HIPS also makes an excellent printing material in its own right. When comparing HIPS vs ABS, you’ll notice it’s harder and stronger than either PLA or ABS, but is just as easy to use. It won’t warp as easily as ABS.

HIPS 3D printer filament can be glued using any one of number of specialty adhesives. It also handles sanding well and can be painted with ease. This makes HIPS 3D Printing an excellent choice for mockups and prototypes.

HIPS 3D Printing Properties:

  • Strong and durable printing material with good impact resistance
  • Excellent soluble support material
  • Good machinability, easily paintable and works with a wide variety of adhesives
  • Food safe, non-toxic and recyclable
  • Non-hydroscopic
  • Printing HIPS filament temperature is from 230°C – 240°C
  • Recommended printing bed temperature of 90°C to 100°C

Some comparisons to ABS and PLA include:

  • HIPS density: around 1.05g/cm3, compared to ABS: 1.07g/cm3, PLA: 1.24g/cm3
  • HIPS tensile strength: around 40 MPa, compared to ABS: 27 MPa, PLA: 37 MPa
  • HIPS glass transition temperature: 90-100C, compared to ABS: 105C, and PLA: 60-65C
HIPS Material

The data stats of HIPS back up its ability to be used in a wide variety of applications. HIPS density has a specific gravity of 1.05 g/cm³. This is comparable to the density of ABS but is less than other thermoplastics such as PLA or PMMA.

HIPS has a Rockwell hardness of R 95 which, again, is comparable to ABS, slightly more than PLA and significantly less than PMMA.

It also has a maximum tensile strength of 5801 psi (40 MPa) which is also, you guessed it, right on the money with the maximum tensile strength of ABS.

So, with HIPS Plastic 3D printing you get a material that shares many properties with ABS, but is also easily soluble and can be machined, sanded, glued, and painted.

It is this versatility that makes HIPS printing filament an excellent choice for a soluble support material, prototyping and as an all-around general printing material.

When it comes to comparing HIPS vs PVA (polyvinyl alcohol) as soluble support materials, it quickly becomes apparent that the two are apples and oranges. The lower printing temperature of PVA works means that it will work much better with a material like PLA while, as we’ve discussed, HIPS dissolvable filament and ABS are more suited to each other.

Both are equally soluble, PLA in water and HIPS in Limonene, so the only reason to pick one over the other as a support material comes down to what printing material you are using for your job.

HIPS Filament Temperature Settings

When it comes to printing with HIPS, there are a few things to keep in mind in order to get the best results possible. First, HIPS prints best at a temperature between 230°C and 240°C. Don’t be afraid to play around with temperatures in this range to see what works best for you.

Next, your printing bed should be set to a temperature of anywhere from 90°C up to 115°C. Again, experiment with temperatures in this range to find the sweet spot that allows HIPS to properly adhere without curling or warping.

After your print job has finished, wait for it cool completely before removing it from the printing plate. HIPS 3D printing material can still be workable when warm and it will bend if you try and remove your object too early.

Use Quality HIPS Filament

When a print job that you’re running gets ruined because of inferior product, you’ve not only wasted your time, you’ve also wasted money. Low-quality filament yields low-quality results.

In the end, you’ll actually spend more on replacement filament than you would have spent stocking up on quality product. Make sure you choose a high-quality HIPS support material (or any filament, for that matter) when printing.

Dissolving HIPS in Limonene

Limonene is an affordable and readily available solvent made from lemons, oranges, and other citrus fruit peels.

If you’re using HIPS as a soluble support material, you want to immerse your printed object completely in Limonene and wait at least 24 hours for the HIPS to completely dissolve. It can help move things along if you give the container the object is in a couple of gentle shakes now and again.

And while HIPS dissolves completely in limonene within around 24 hours, this doesn’t affect ABS, making it perfect for removing HIPS supports from ABS parts with a dual extruder 3D printer.

HIPS prints at the same temperature as ABS, making it the most appropriate dissolvable filament for ABS. Other dissolvable materials such as PVA filament print at far lower temperatures and will not work with ABS, and for this reason PVA is instead commonly used when 3D printing PLA.

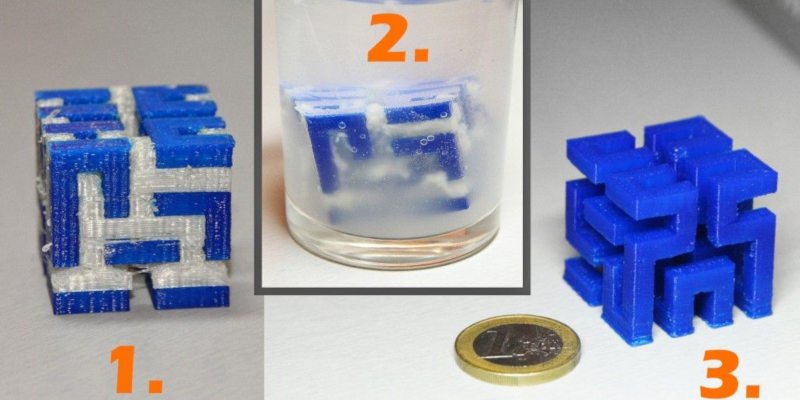

dissolving hips
Stages of HIPS dissolving process. Source: gambody.com

Best Build Surfaces for 3D Printing HIPS

HIPS is a forgiving 3D printer filament, and can work well with Kapton tape, PEI sheets, glue stick and hairspray. If using a build surface that adds height to your build plate, remember to adjust your first layer in your 3D slicer settings before printing.

However, as with ABS, HIPS releases toxic fumes when melted and 3D printed. Therefore, it is essential to store your 3D printer in an area with good ventilation where you will not inhale any styrene fumes.

Best HIPS filaments

Some HIPS filaments and selections we recommend are included below:

Best HIPS 3D Printers

To 3D print HIPS as a support material, you’ll need a dual extruder 3D printer, and a printer with a closed enclosure.

We recommend a number of these in our dual extruder buyer’s guide.

Pros and Cons of 3D printing HIPS filament

Advantages of HIPS filament

  • Reasonable price: though not as cheap as ABS, HIPS offers more than ABS does at not far higher prices.
  • Non-hygroscopic: whereas almost all other filaments are hygroscopic and will deteriorate over time if left out in open air, HIPS is not hygroscopic.
  • Dissolvable: leaving HIPS in limonene dissolves it quickly, leaving smooth ABS parts with no imperfections.
  • Versatile: HIPS parts can be easily painted, machined, sanded and processed, making it a great material for rapid prototyping and testing new iterations of products.
advantages of hips filament

Disadvantages of HIPS filament

  • Toxic odors while printing: like ABS, HIPS emits fumes while 3D printing, and therefore you must store your 3D printer in a well-ventilated area or room while printing.
  • Warping: therefore, you must use a heated bed and chamber to minimize warping and cracking between layers. 3D printer kits are therefore less suitable for HIPS 3D printing.
disadvantages of hips filament

Applications of HIPS in 3D printing

HIPS is most used as a support material for ABS 3D printed parts to be dissolved post-print in limonene.

However, HIPS also has standalone uses in aesthetic parts and projects such as cosplays and other costumes due to its glossy clear finish, as well as in 3D printed toys and other appliances. Its light weight, strength and ease of painting and post-processing also makes it a great filament for testing pre-manufacturing models.

Outside of 3D printing, HIPS is used in toys, laptop, CD, DVD and phone cases, and is used extensively in signage and point of sale displays due to its ability to be vacuum formed, bent and molded into shape with ease.

Due to being classed as food safe, HIPS is also used in millions of food and drink packaging, disposable cutlery, and yoghurt pots every year.

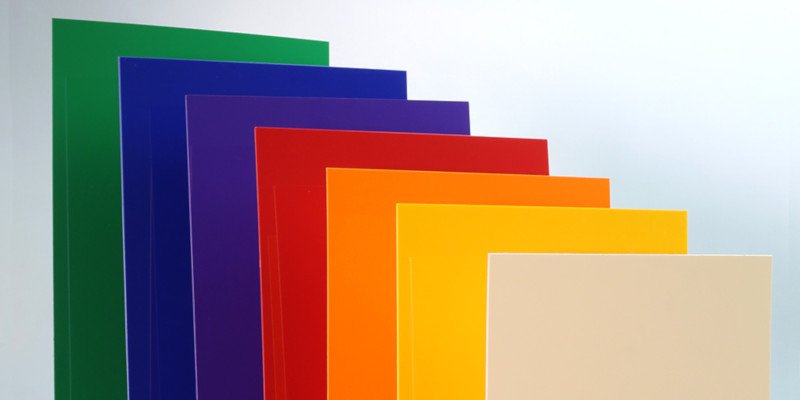

hips plastic sheets
HIPS’ color range and versatility make it a commonly used copolymer for signage.

History of HIPS in 3D printing

German apothecary Johann Eduard Simon first discovered polystyrene back in 1839, but it was not industrialized and sold until almost a century later in 1931 by I. G. Farben company.

However, standard polystyrene is brittle, and was therefore unsuitable for many industrial uses, and other materials were generally preferred.

A solution was found however by mixing it with polybutadiene – a synthetic rubber – to create a copolymer called HIPS, making it tough yet flexible and solving the brittleness problem. This primed HIPS to become a wildly successful material used in signage, point-of-sale and food packaging across the world.

HIPS Filament Frequently Asked Questions

What extruder temperature should you print HIPS at?

Depending on your HIPS filament, generally print between 230°C to 240°C, with the higher end of the scale better for adhesion. If you are struggling to get good layer adhesion, increase the temperature, but if you encounter stringing or oozing, lower the temperature slightly and check your retraction settings.

Do you need to use a heated bed and enclosure to 3D print HIPS?

Yes. Though it doesn’t warp quite as much as ABS, HIPS filament will warp if you do not use a heated bed and a heated chamber or enclosure. Use a heated bed of between 90°C and 100°C depending on your type of HIPS filament, though 100°C+ can be best for adhesion. Higher temperatures prevent warping due to the material cooling too quickly.

Using an enclosure or heated chamber also keeps the high ambient temperature consistent during printing, preventing any rapid cooling that causes warping and deformation. Many desktop FDM 3D printers now come with enclosures, but 3D printer kits and RepRap 3D printers are typically open printing and will struggle to 3D print HIPS.

How much does HIPS filament cost?

Standard HIPS filaments typically cost between $30-$55, depending on the quality and blend. Though more expensive than basic filaments such as PLA or ABS, HIPS falls far below the industrial filament prices of Polycarbonate and carbon fiber filaments.

Is HIPS recyclable?

Yes, HIPS is fully recyclable. However, check your local recycling center to ensure they accept HIPS before attempting to recycle it.
